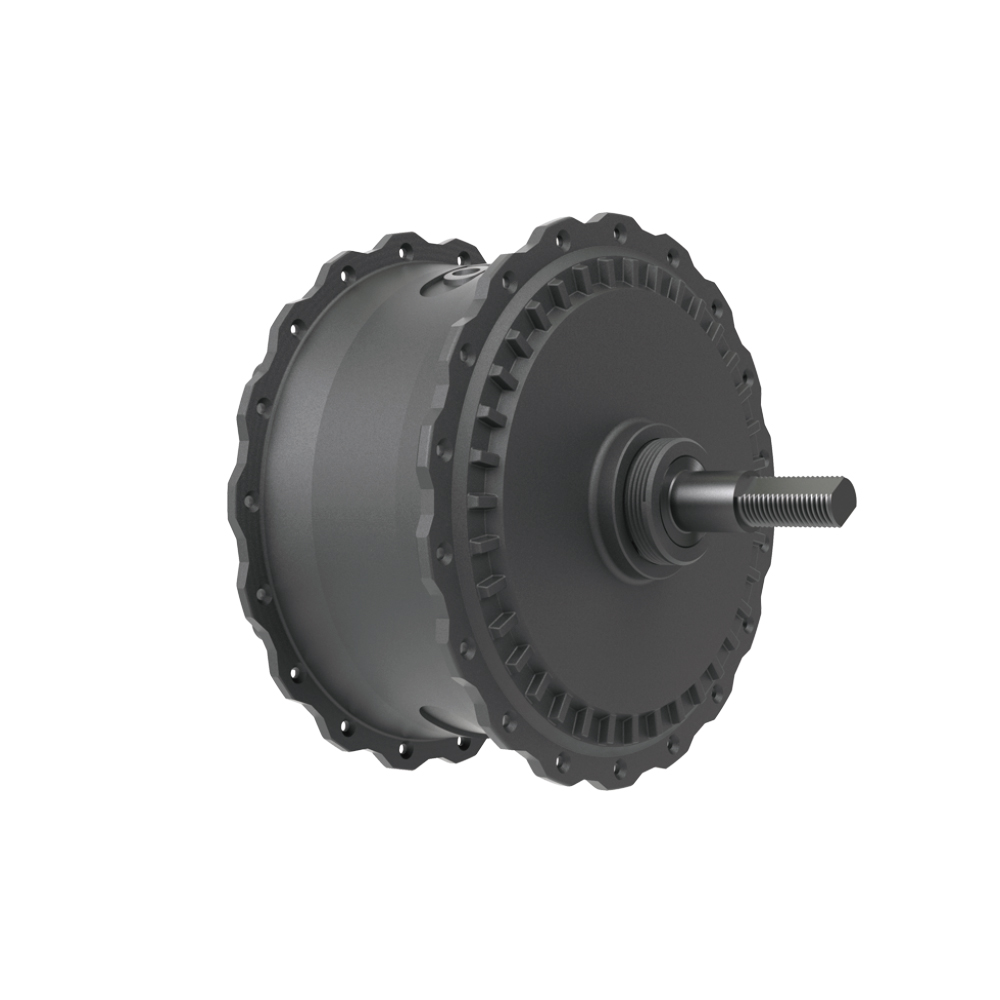

Snow-Ride Ebike Motor

Super Strong Magnet · Brute Force · True Waterproof · No Coil Burnout

Model:
Snow-Ride Ebike Motor
Brand:
DAAO
Code:
AMK110XZ-01(X)
Voltage:
36/48/60 V
Power:
350～750


Availability:



Inquiry

Product Description

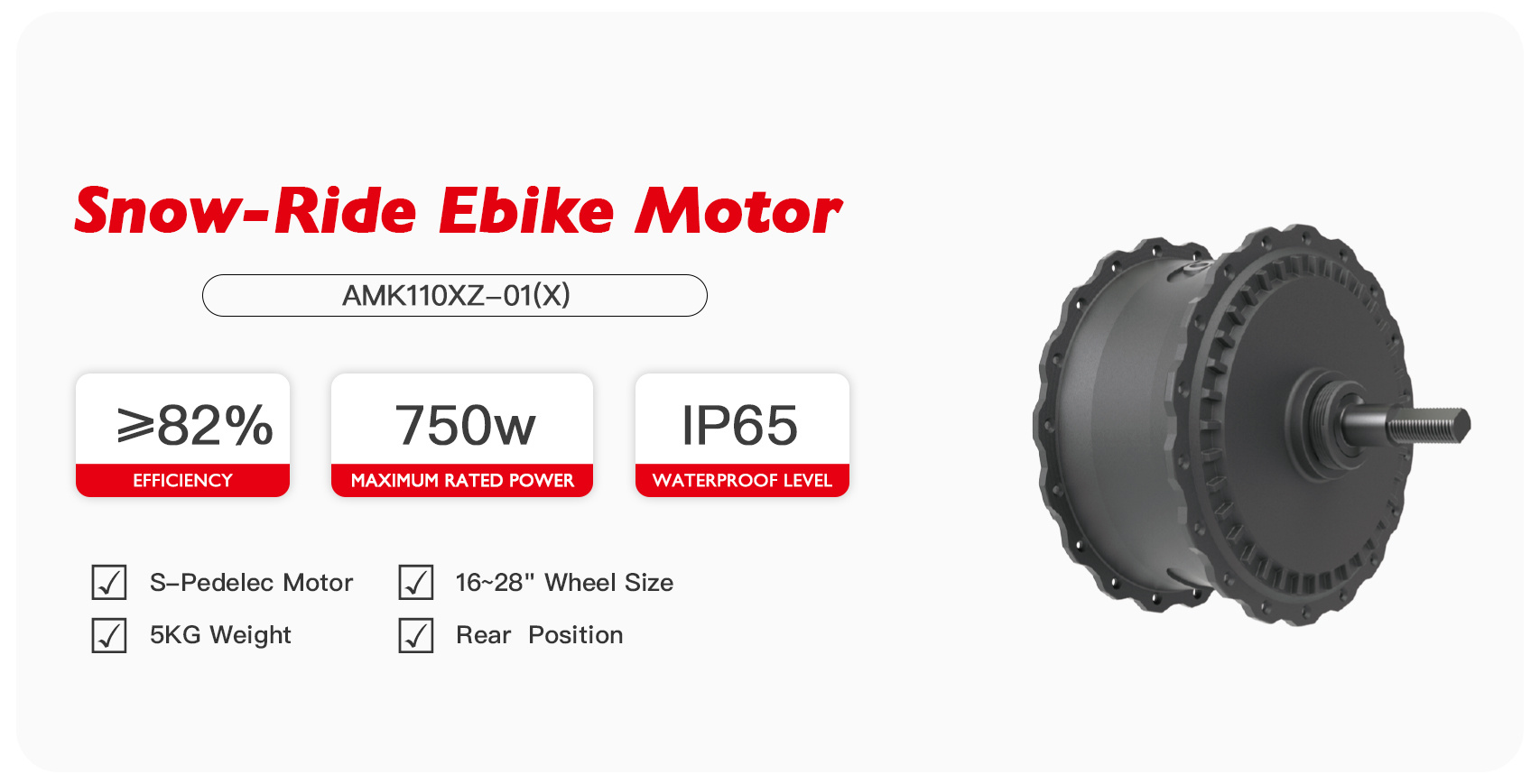

AMK110XZ-01(X)-1

Product Introduction

A high-performance electric power assisted drive system designed specifically for low adhesion and complex road conditions such as ice, snow, and mud. It adopts a high torque wheel hub motor solution, with large output torque and wide temperature range operation capability. The sealing level reaches IP65 or above, and with wide tires and low-temperature batteries, the snow motor makes E-bike safer and more efficient for outdoor cycling in winter. It is widely used in cold regions such as Northern Europe and Canada, as well as mountain snow road scenes.

S-Pedelec Motor
Suitable for 16~28 "wheel rim sizes

5KG Weight

Rear Position

Parameter Information

Motor Parameters
Position	Rear
Wheel Size	16～28
Rated Voltage	36/48/60 V
Rated Power	350~750 W
Efficiency	≥ 82 %
Rated Speed	25~45 km/h
Max Torque	85 N.m
Waterproof Level	IP65
Noise Level	﹤55 dB
Weight	5 kg
