You are here: Home » Products » E-Motorcycle Motor » Hub Motor » Power Bull F35 E-Motorcycle Hub Motor

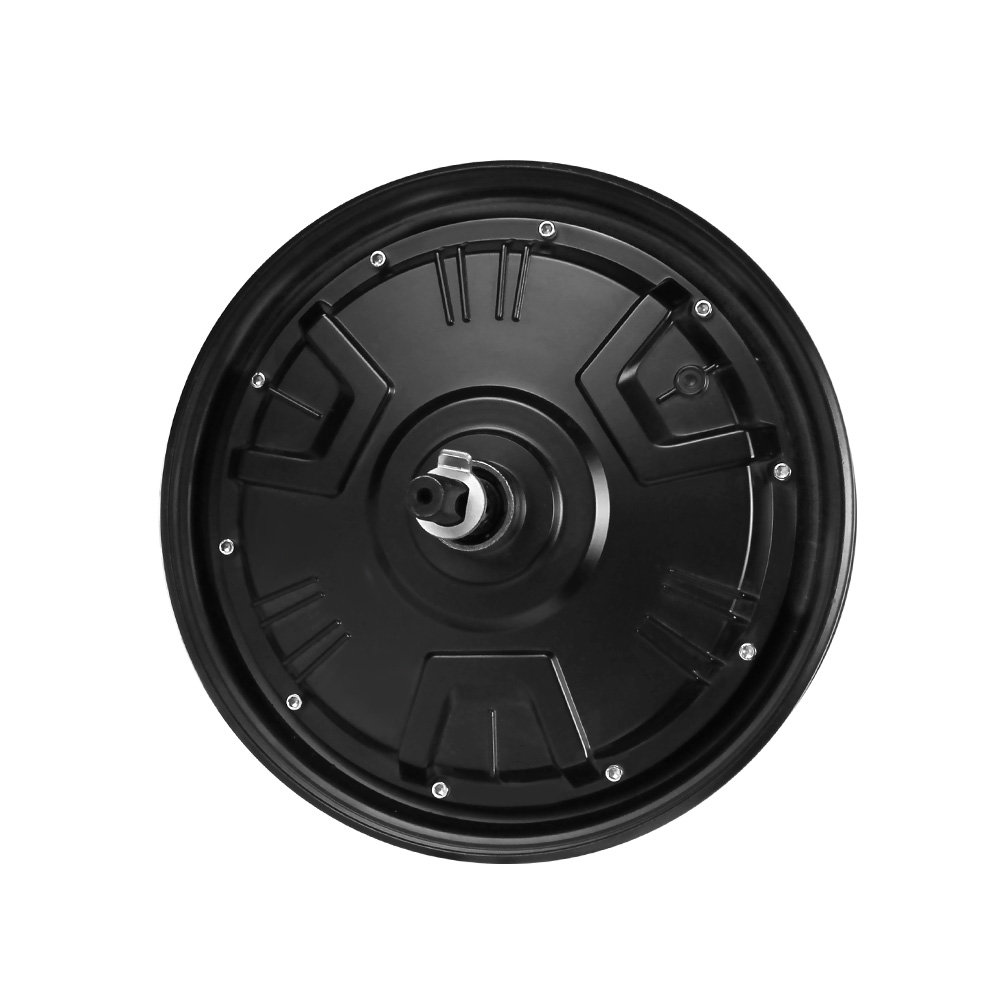

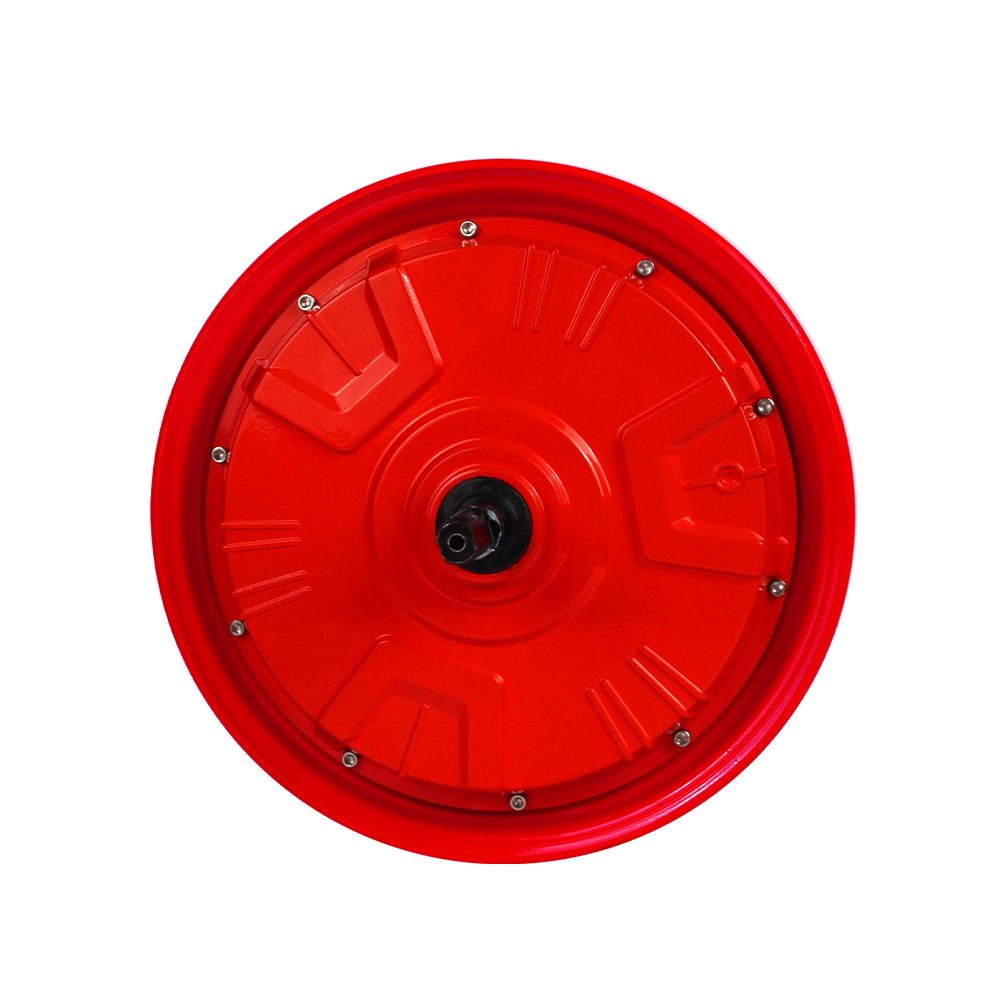

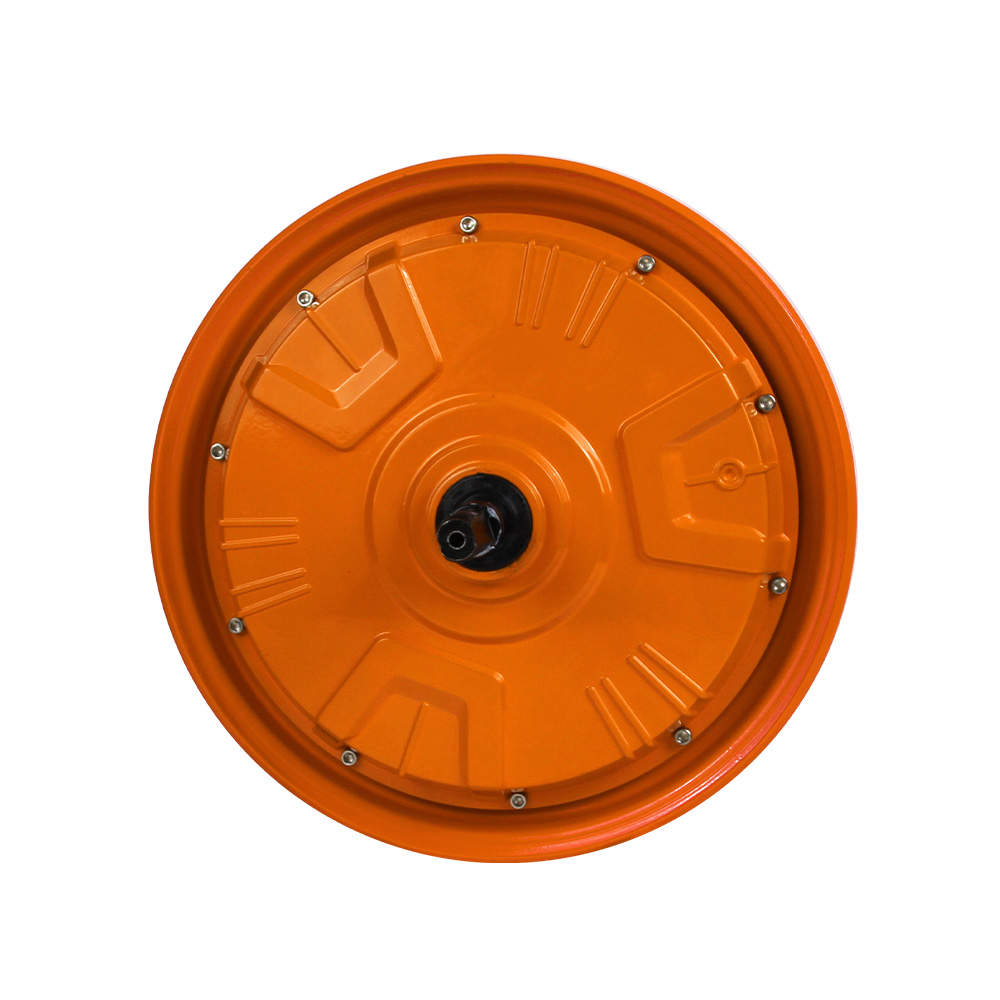

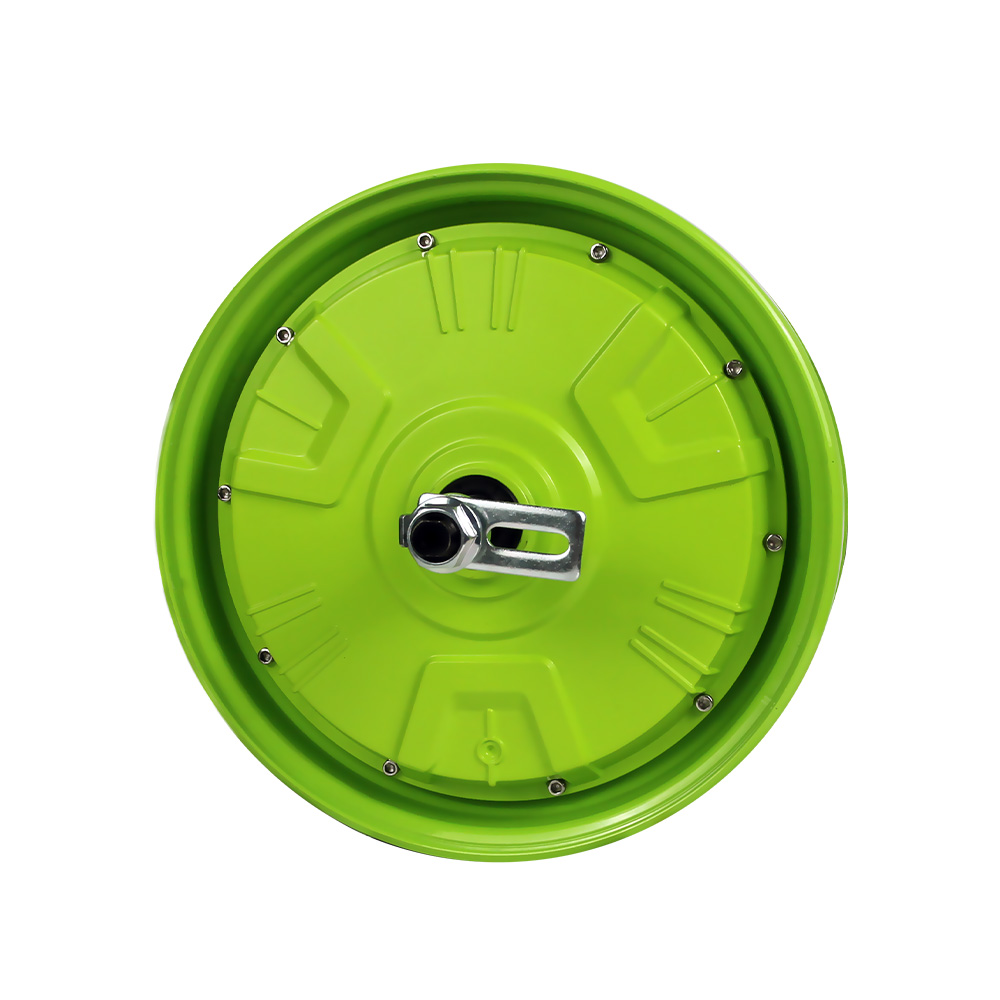

Power Bull F35 E-Motorcycle Hub Motor

Super Strong Magnet · Brute Force · True Waterproof · No Coil Burnout

Model:
Power Bull Series Motor F35
Brand:
DAAO
Code:
AMK215-10DM2005
WHEEL SIZE:
10"
PEAK TORQUE:
41~140 N.m
PEAK POWER:
500~1500 W


Availability:



Inquiry

Product Description

Product Description

产品介绍02

Product Introduction

This motor delivers robust performance with a peak power of 1500W and a peak torque of 150N.m. Its powerful torque output ensures easy handling of steep inclines, heavy loads, and other challenging road conditions. It is ideally suited for high-demand applications such as mountain riding, food delivery, and long-distance travel, providing reliable and sustained power.

Brushless DC

Permanent Magnet

Hub Motor

For E-Motorcycle

Parameter Information

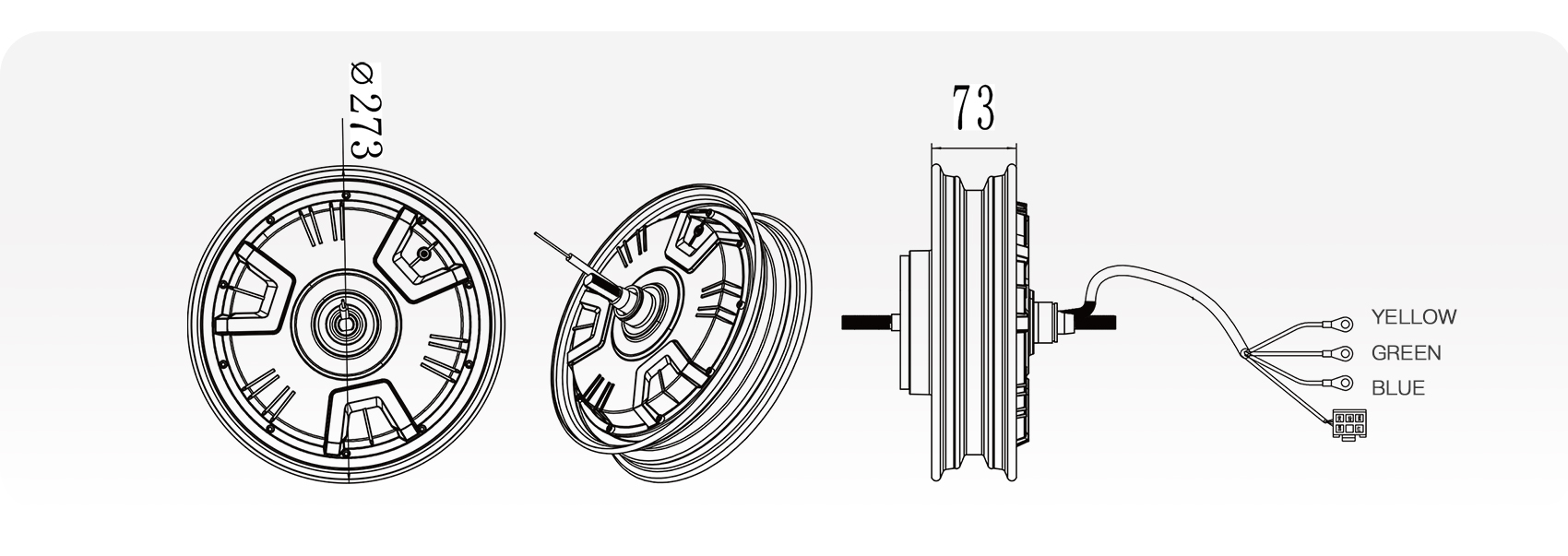

劲牛外形图1

Wheel Size(inch)	10"
Rated Voltage(V)	48~96
Rated Power(W)	500~1500
Rotational Speed	420~1000
Torque(N.m)	41~140
Brake Type	Drum Brake/Disc Brake
Waterproof Rating	IPX7

Explore the Product

motor-bg

Rotor permanent magne

Rare earth neodymium iron boron permanent magnet

High remanence, high coercivity, high magnetic energy product

Stator winding

High purity electrolytic copper

Low resistivity, high conductivity

Winding enameled wire

Anti corona enameled wire paint

High dielectric strength, high temperature aging resistance

End cover shell

Magnesium alloys, high-strength aluminum alloys, etc

Good strength to weight ratio, good processability,

and excellent thermal conductivity

Special treatment

Rotor immersion paint

Improve insulation performance, prevent moisture and pollutants from entering, enhance heat resistance, and improve mechanical strength

High waterproof grade

Prevent water ingress and oxidation inside the motor to ensure long-term stable operation

生产线拷贝

Don't know how to choose the appropriate motor?

Learn More

With years of motor R&D and manufacturing experience, the DAAO team demonstrates professionalism, expertise, and unwavering patience. We have been a reliable partner in numerous e-motorcycle development projects.
DAAO is capable of providing top-level drive systems and expert consultation. If you wish to engage in technical discussions or launch a project, we are ready to assist you every step of the way.
