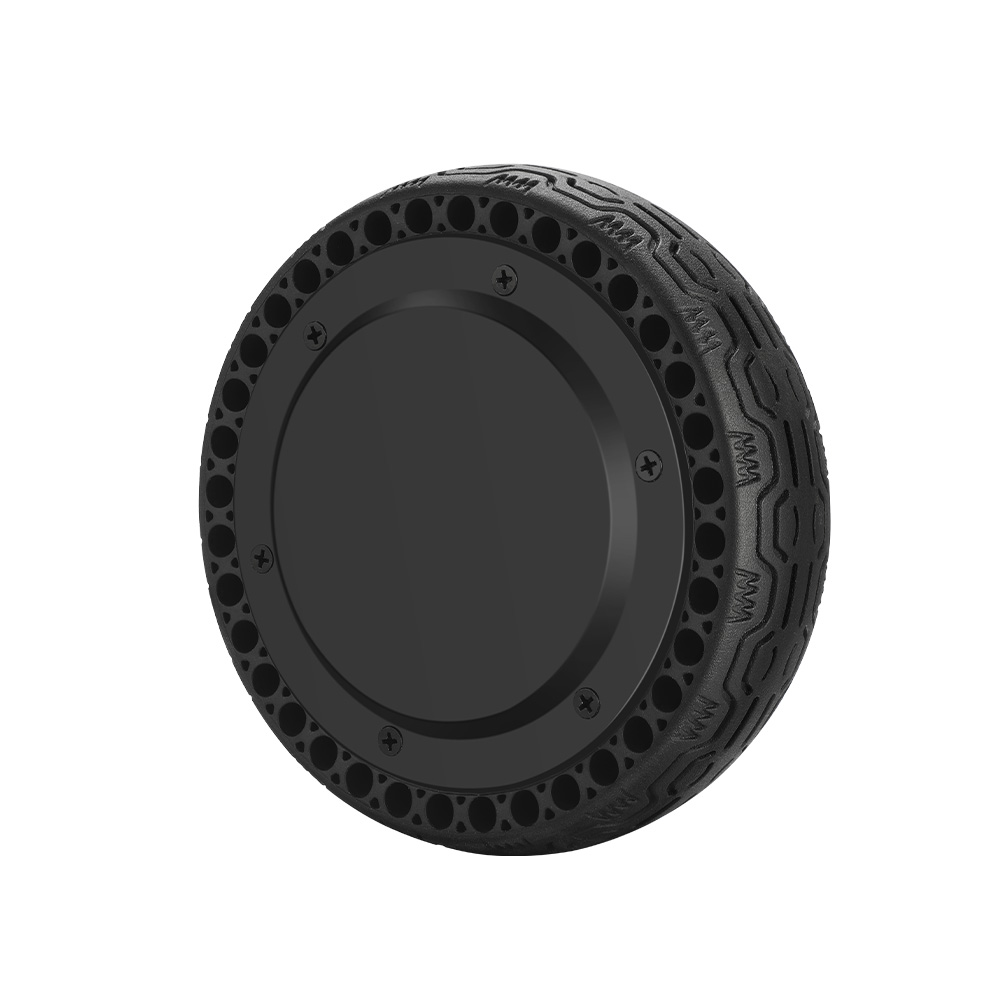

6.5"Robert Chassis Motor

Super Strong Magnet · Brute Force · True Waterproof · No Coil Burnout

Model:
6.5"Robert Chassis Motor
Brand:
DAAO
Code:
AMK105-6RC7004
Rim:
6.5"
Voltage:
24 ~ 28 V
Power:
150-350 W


Availability:



Inquiry

Product Description

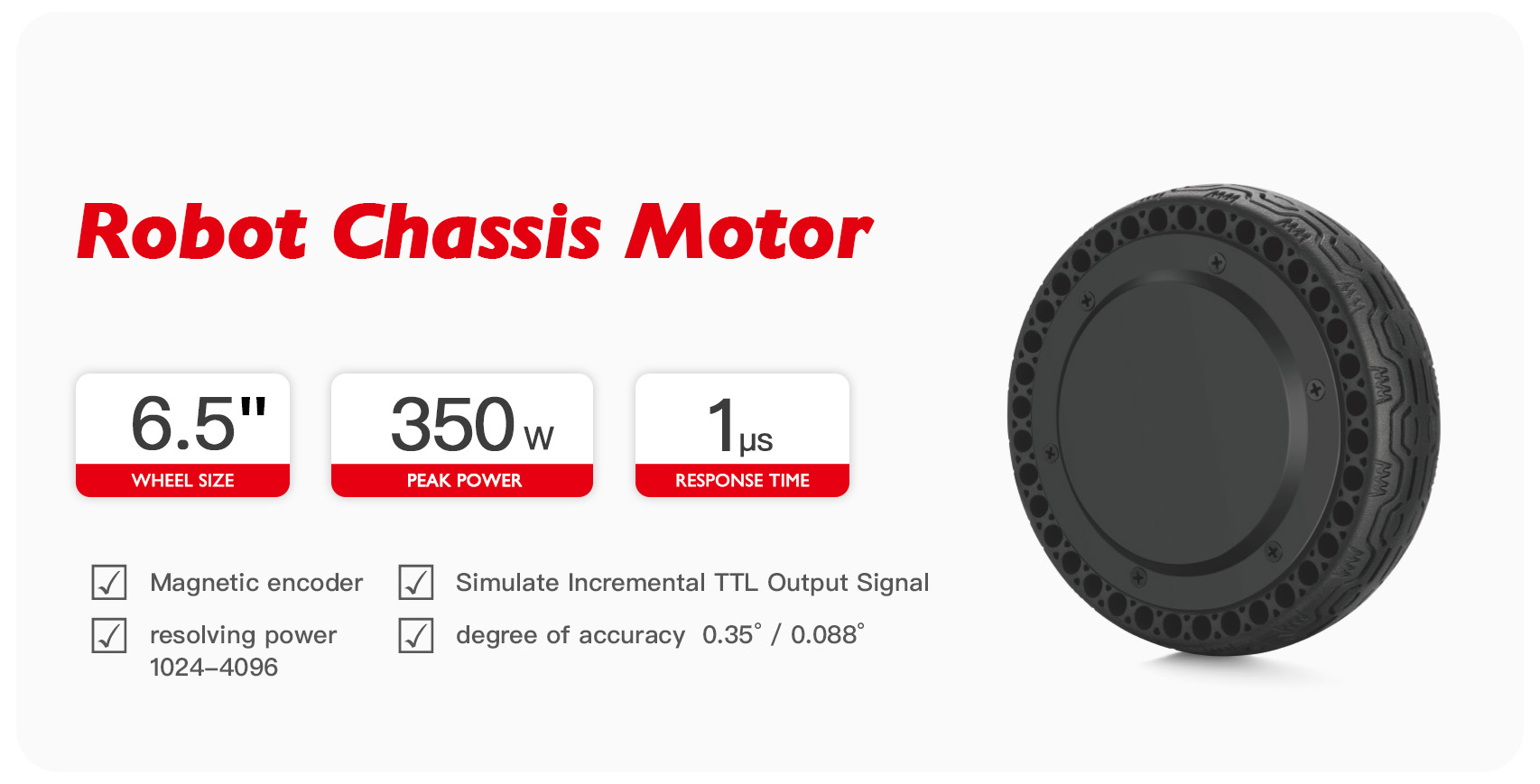

6.5产品介绍首图e

Product Introduction

Encoder Motor is a core driving component designed specifically for intelligent mobile robot chassis, integrating high-precision DC motors and rotary encoders. It is widely used in service robots, AGVs (Automated Guided Vehicles), educational robots, and industrial automation equipment.

Magnetic Encoder
Simulate Incremental TTL Output Signal

Resolving Power1024-4096

Degree of Accuracy 0.35° / 0.088°

Parameter Information

Motor Parameters
Voltage Range	24 ~ 48 V
Power Range	150 ~ 350 W
Rim Size	6.5 "
Encoder Parameters
Encoder Type	Magnetic Encoder
Output Signal	Simulate Incremental TTL
Resolution	12-bit（1024 steps）/16-bit（4096 steps）
Accuracy	0.35° / 0.088
Response Time	1μs
Operating Voltag	5V/3.3
Current Consumption	9-14mA
